Sound Techniques Alpha Range Channel

Rediscover the console that crafted the most iconic music of the late 60s and early 70s, the Sound Techniques. Our channel strip has all the tonality and magic of the hardware, brought into the future and now in your DAW.

sound techniques alpha range channel
Sound Techniques

Are you ready to get iconic?

The signature sound of the Sound Techniques console, modeled at component level.

You know the sound: crisp, detailed highs. Punch that pops tracks out of the speakers. A warm, huge low end. It was the essence of iconic recordings made in the late 1960s and early 70s. It was the signature sound of the Sound Techniques recording console.

The Sound Techniques A-Range at Sunset Sound
The Sound Techniques A-Range at Sunset Sound.

The Sound Techniques A-Range* was the desk of choice in major studios in England, such as Trident and De Lane Lea, and was the first British recording console ever in the United States, in Sunset Sound’s fabled Studio 2. The biggest artists of this era were cutting their songs on a Sound Techniques, and were willing to fly the Atlantic to do so.

A Sound Techniques A-Range at Trident Studios, London
A Sound Techniques A-Range at Trident Studios, London.
Late 1964 Geoff Frost and John Wood found Sound Techniques studio in Chelsea, London.
1965 The first A-Range console is built and installed in their own Chelsea studio.
1965–71 Fourteen A-Range consoles hand-built in total.
April 1967 The first A-Range is sold to Sunset Sound Recorders, Hollywood — the first British-designed mixing desk sold in the U.S.
1968 The second U.S. A-Range goes to Elektra Sound Recorders, West Hollywood.
1968 Trident Studios, London installs the first of two Sound Techniques consoles.
Late 1960s System 12 is introduced, often cited as one of the first compact mixing consoles ever built; roughly 40 units made.
1970 A System 12 is installed at Randy’s Studio 17 in Kingston, Jamaica.
1973 A System 12 bought by the Rolling Stones is operating at Dynamic Sound Studios, Kingston.
1974 Sound Techniques loses the lease on the Chelsea building housing both the studio and console manufacturing; the business effectively ends there.

Now it’s 2026

By 1976, Sound Techniques closed up shop and the brand vanished, forgotten by most of the industry. In 2018, Sound Techniques returned, making new, amazing sounding consoles and hardware. And you’ve heard these recordings as well, with that same signature openness and power.

In 2026, we’re delighted to introduce our Sound Techniques Alpha Range Channel strip. It’s the sound of those iconic studios and records, digitally modeled at component level, and now it’s in your DAW.

2014–16 Danny White purchases the Sound Techniques name and restarts the brand.
2018 The first new Sound Techniques consoles ship under White’s revived company.
2025 Danny White connects with Korneff Audio.
2026 Korneff Audio releases the Sound Techniques Alpha Range plug-in, a channel strip based on the original console. Warm Audio releases the Jude Preamp, a hardware version of the original.

* A-Range is a trademark of Trident Audio Developments (PMI Audio Group).

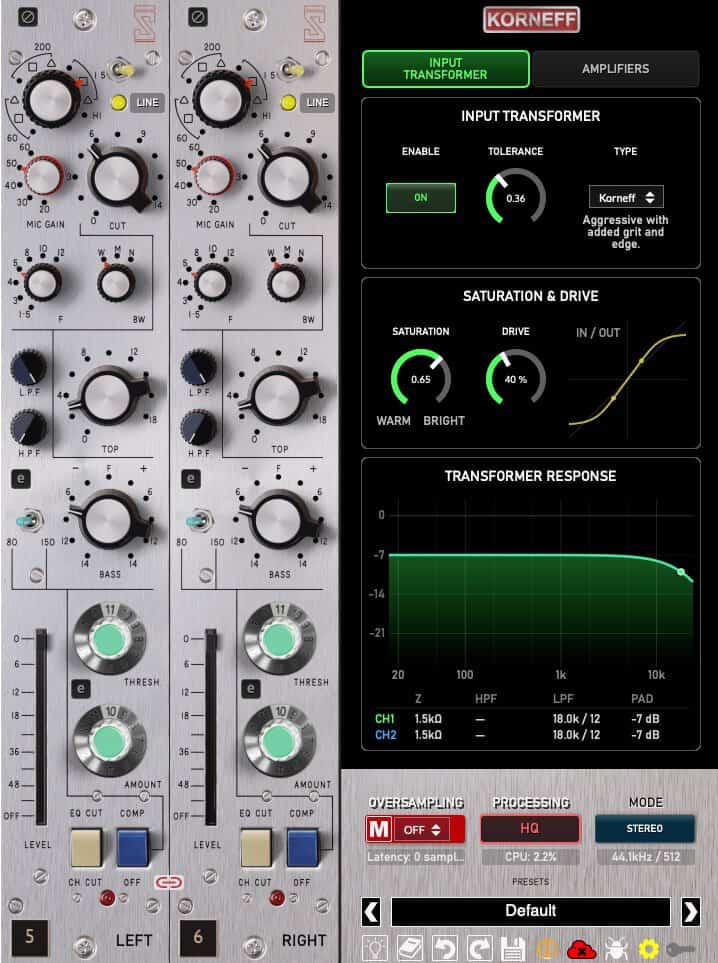

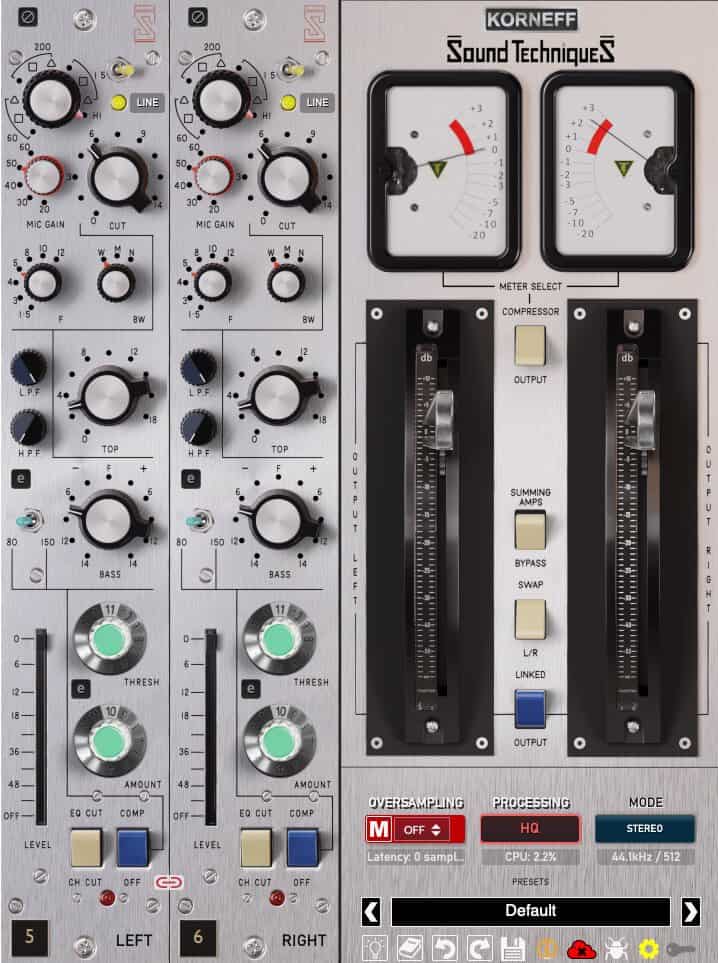

chocolate swap backchocolate swap front

The magic of Sound Techniques, now in your DAW.

  • Recreate the unique sonic signature of an iconic console.
  • Capture the distinctive punch of classic 70s albums.
  • Dial in huge, tight lows to fatten your recordings.
  • Smooth and detail the high-end on vocals and lead instruments.
  • Add snap and tang to snares, kicks and guitars.
  • Precisely control saturation for color and texture.

The Sound Techniques Preamp

A one-of-a-kind design for a signature sound.

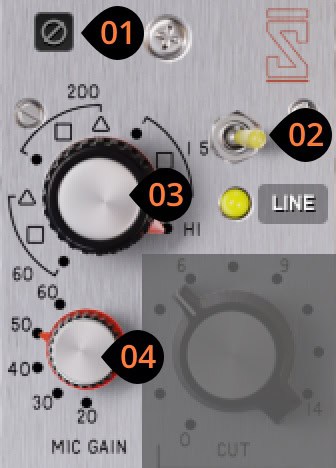

Sound Techniques preamp panel controls

The unique design of the Sound Technique preamp gives the Alpha Range strip saturation characteristics that impart size, warmth and sparkle to any sound source. A few clicks on the Mic Gain Preamp are a great start, but you can fine tune the transformers and amplifiers to tailor response to your mix.

01 Polarity Switch Flips absolute phase at the input stage.
02 Mic / Line Switch Selects the input stage feeding the transformer.
03 Input Transformer Impedance Loads the transformer differently for tone.
04 Mic Preamp Gain Drives the amplifier stage into saturation.
Sound Techniques preamp plugin interface

The Sound Techniques EQ

Unconventional, useful and gorgeous.

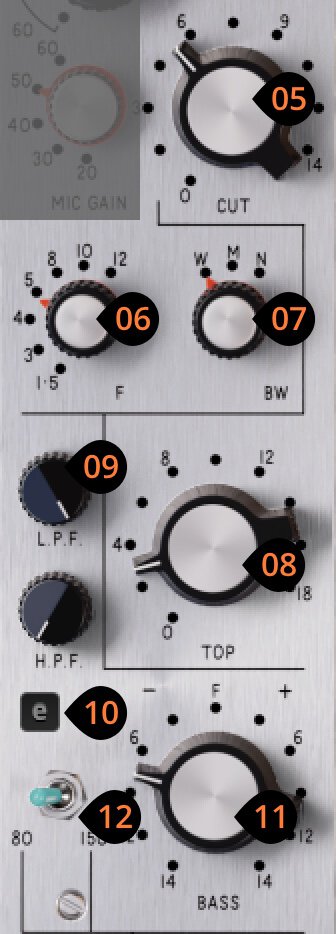

Sound Techniques EQ panel controls

The Alpha Range EQ is two bands of inductor-based equalization. It’s simple, but there’s a reason everyone wanted to mix on a Sound Techniques.

The high band features sweepable frequencies and a boost and a cut at the same time—it’s a high end “Pultec Trick” that adds air while controlling harshness.

The low end is designed for big bottom end, low mid warmth, and reduced muddiness.

We’ve included a set of high and low pass filters as well.

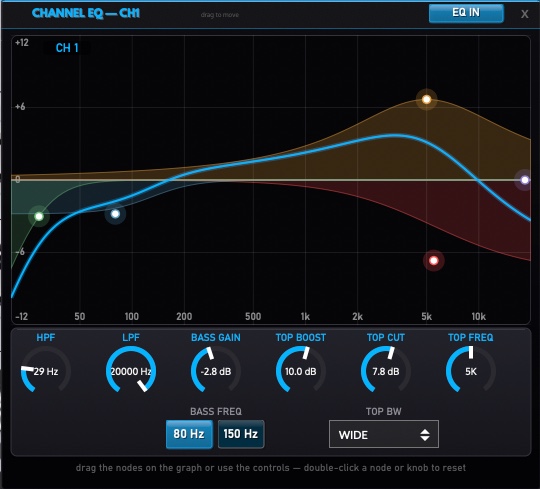

Sound Techniques EQ plugin interface
05 High Frequency Cut Tames harshness in the high band.
06 High Frequency Selection Sweepable frequency choice for the high band.
07 Bandwidth Selector Sets the width of the high band curve — wide, medium or narrow.
08 High Frequency Boost Adds air on top, usable alongside the cut.
09 Pass Filters High and low pass filters for both bands.
10 EQ Editor Opens real time analyser and editor.
11 Low Frequency Selection Switches the low band between 80 and 150 Hz.
12 Low Boost/Cut Big bottom end, low mid warmth, less mud.

A Killer Compressor

Modern features hidden in a vintage interface.

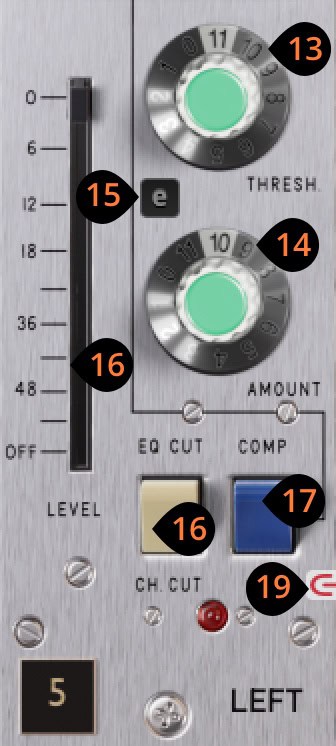

ElektraComp channel controls

The original Sound Techniques consoles had quirky interfaces. We wanted to maintain the look of the original Sound Techniques channels but add some of the features we know modern DAW workflows demand. So we added a compressor.

The ElektraComp is a vintage VCA-based design providing plenty of punch. Easy mode has just two knobs, a Threshold and a Blend (all set for parallel processing). Switch off Easy, and you get access to all the parameters, and a useful display to guide your choices.

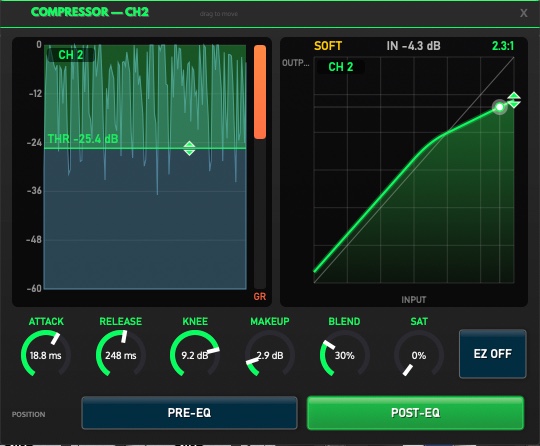

ElektraComp plugin interface
13 Compressor Threshold Sets where the ElektraComp starts working — one of the only two knobs you need in Easy mode.
14 Compressor Blend Mixes compressed and uncompressed signal, preset for parallel processing.
15 Compressor Editor Opens compressor visualizer and additional controls.
16 Channel Fader Sets the channel output level feeding the bus.
17 Compressor In/Out Bypasses the compressor so you can A/B against the dry channel.
18 Channel Link Ties channels together for matched stereo compression.
19 Channel Cut Mutes the channel without disturbing your fader position.

Summing and Saturation

Customize the sound of the console.

A summing bus emulation gives the Alpha Range Channel the full sonic breadth of the console. Comprehensive back panel controls allow for unlimited tweaking of all the amplifier circuits in the channel and resource management.

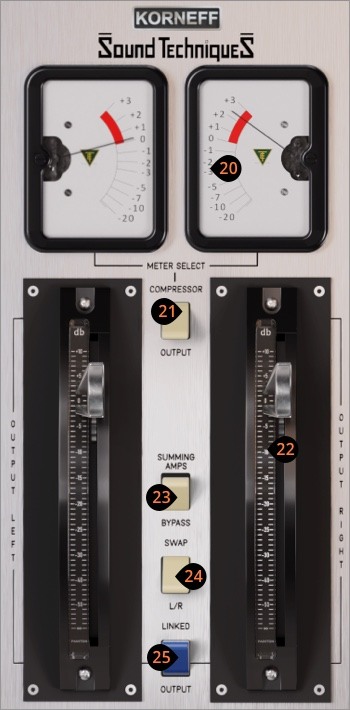

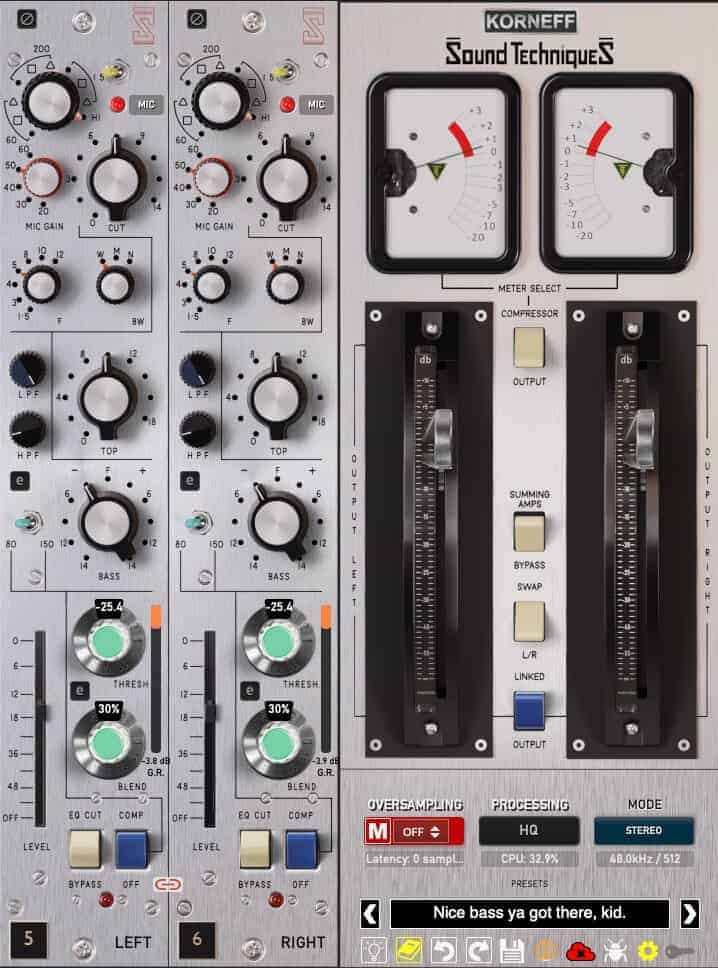

Alpha Range summing bus and output section, controls numbered 20 to 25
20 VU Meters Analog-style ballistics show level and gain reduction.
21 Meter Display Switches the meters between output level and compressor gain reduction.
22 Output Faders Set the level into the summing amp stage.
23 Summing Amps Switches the summing bus emulation in, or bypasses it.
24 L / R Swap Flips the left and right channels at the output.
25 Fader Link Ties the two output faders together so they move as one.

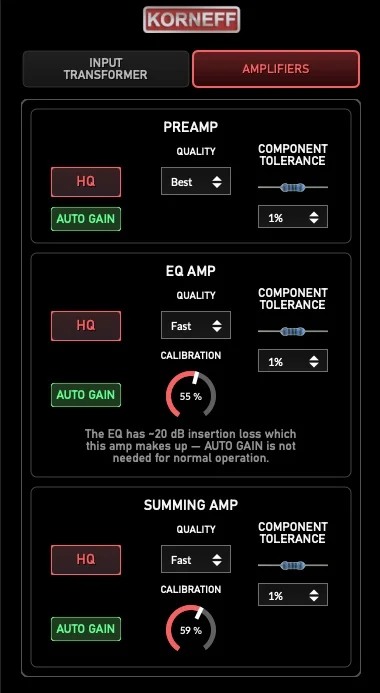

Alpha Range Channel back panel controls

The sound of Sound Techniques

sca colorful 01
sca dan walk silent

Get your Sound Techniques Alpha Range Channel

The Alpha Range is compatible with all major DAWs.

pro tools 2 200x200
logic pro 200x200
cubase 200x200
studio one 200x200
reaper 200x200
reason 200x200
nuendo 2 200x200
abbleton 200x200
digital performer 200x200
fl (2)
audacity 200x200
bitwig studio 200x200
garageband 200x200
clay blair 2

The Alpha Range plugin is one I’ve been waiting on for years, ever since I installed our 36 channel Sound Techniques ZR console. Korneff nailed it. I'm now able to EQ things the way I'm used to without having to put it through the console! It’s my favorite EQ—in or out of the box

Clay Blair
Grammy-winning mixer/producer and owner of the legendary Boulevard Recording, Hollywood
The War on Drugs, Richard Thompson, Andrew Bird, Counting Crows, The Record Company, Moby & Lady Blackbird, Watkins Family Hour, J.S. Ondara
screenshot

Don't think I'd ever been so excited for a plugin before and it did not disappoint! Been obsessed with the history and sound of the countless records done with Sound Techniques consoles, and having that in a plugin is a dream come true. It's as warm, punchy and big sounding with a huge round bottom and open top, but it also has a particularly special midrange that I've never heard on anything else. For years I'd been searching for that unique snare sound on all those old Sound Techniques and De Lane Lea records and for the first time ever I was able to get it just right on a recent mix using the plugin.

Alejandro Venguer
5 Time Grammy winning mixer and engineer
Sting, John Legend, Marcus Miller, Aretha Frankiln, Wynton Marsalis, Sufjan Stevens, Regina Spektor, Train, Mark Ronson, Carter Burwell

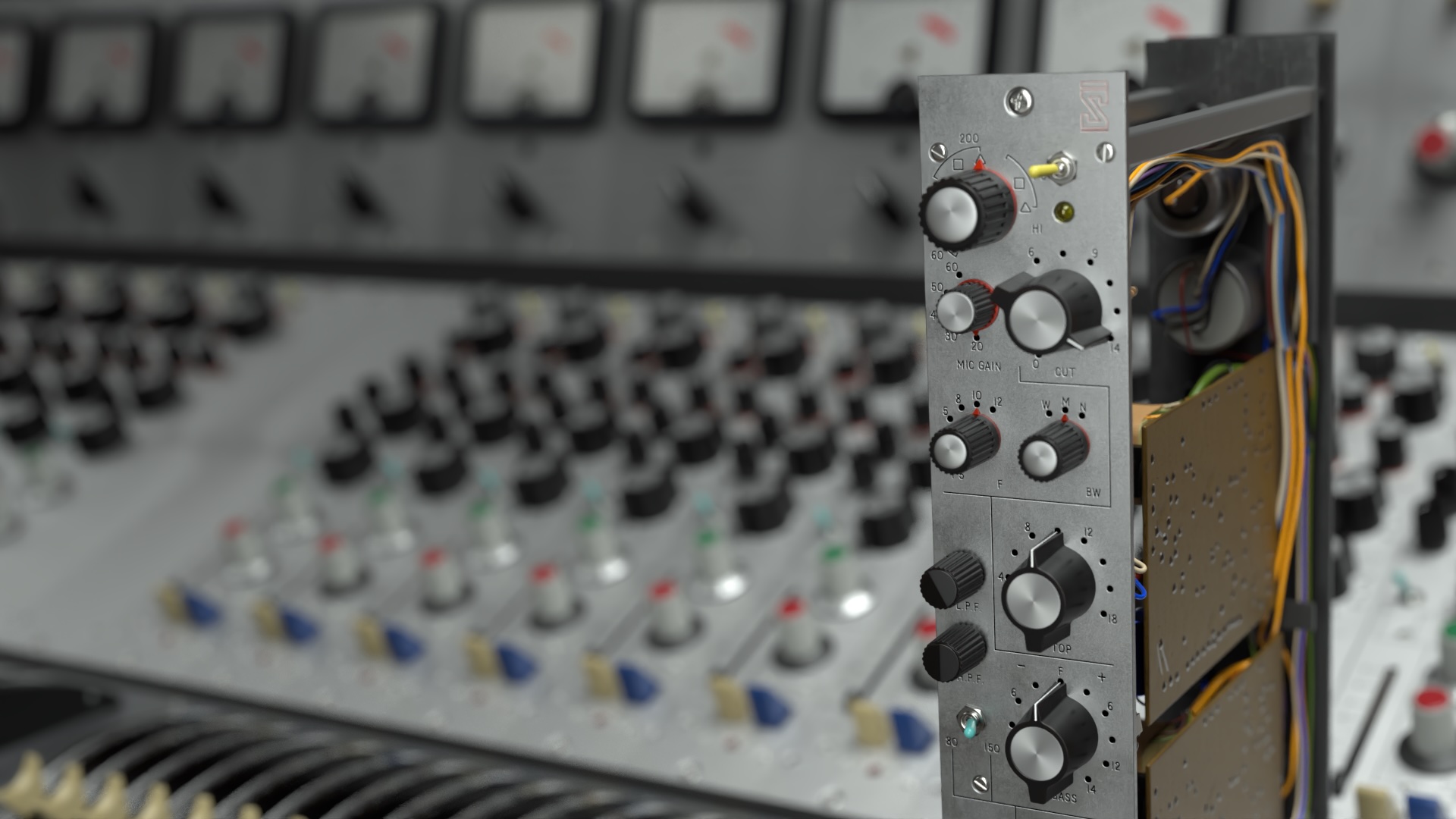

sca closeup hero

Hear the Sound Techniques Magic for Yourself

Leave Your Review

You must have an account and login.
Login
On Page Review Form

Korneff Plugin Licensing

dongle icon

Software Based

Korneff Audio uses a software-based licensing system. No USB or hardware dongles, no special drivers are needed.
computers icon

Four Activations

Our plugins can be activated on up to four (4) machines at the same time.
wifi icon

Connections

An internet connection is required to activate our software. Internet connection required for all demos.

SOFTWARE REQUIREMENTS: Sound Techniques Alpha Range Channel

Current Version:
1.0.1
osxwindows logolinux logo

Minimum System Requirements

  • Intel, AMD or Apple Silicon i5 quad core processor
  • 4GB of RAM
  • Mac OSX 10.14 or later
  • Windows 7 & Above
  • Linux minimum: Ubuntu 18.04 LTS or equivalent (x86-64)
  • Linux recommended: Ubuntu 20.04 LTS or later, Debian 11+, Fedora 36+, or any modern distribution using glibc ≥ 2.28
  • Screen res: 1024 x 768 or higher
lv2 flat green border

Supported Plugin Formats

  • Mac 64bit: VST3, AU, AAX
  • Windows 64bit: VST3, AAX
  • Linux 64bit: VST3, LV2
